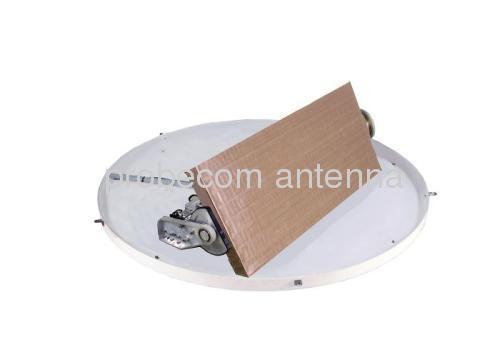

80cm drive away ku band on the move antenna

Price: 1.0 USD
Payment Terms: T/T,L/C,WU
Place of Origin: Shaanxi, China (Mainland)
inquire skype
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: P8000
Production Capacity: 30 sets/month
Delivery Date: 1 month
Size: 80cm
Stable Type and Track Type: Two-axis balancing stabilit...
Net Weight: 85kg
Power: AC220V, 50Hz
Frequency range: Rx:12.25-12.75GHz ; Tx:14.0...
Means of Transport: Ocean,Land,Air
Packing: Suitable for Land, Ocean, A...
Brand Name: Probecom
Antenna Type: Panel waveguide horn array ...
Radome Size (diameter×hight): 130×40cm
Band: Ku band
Inertial Navigation System: Built-in

The P8000 On The Move Antenna is built to track a single satellite while mounted on a stationary or moving vehicle at anywhere/anytime on the road.

 80cm drive away ku band on the move antenna
ModelNo.P8000
Stablization Type and TrackingTypeTwo-axis balancing stability(azimuth and elevation)
Four-axistracking
(azimuth, elevation, receive polarizationand transmit polarization)
RadomeSize (Diameter×Height)130×40cm
NetWeight85kg
AntennaTypePanel waveguide horn arrayantenna
InteroperabilityEquiv. to 80cmParabolic
FrequencyrangeRx:12.2512.75GHz ; Tx:14.014.5GHz
Gain(Polarization Converter)Rx:37.5dBi (12.5GHz); Tx:38.7dBi(14.25GHz)
CrossPolarization Isolation30dB(Pauseand in Motion)
OffAxis emission≥30dB
SidelobeEnvelope CharacteristicMeet ITU-RS.465-6 standard
PolarizationLinear
Tracking VelocityAzimuth: 150°/s
Elevation: 120°/s
   Polarization: 100°/s
Tracking AccelerationAzimuth: 800°/s2
Elevation: 800°/s2
   Polarization: 600°/s2
DynamicAccuracy0.2°RMSE
Travel Range        Azimuth: 360°continuous
Elevation: 0°90°
           Polarization: 360°continuous
InitialAcquisition<120s(pause),<180s(in motion)
Re-acquisition   <1 second for <30 seconds blockage
<5seconds for <20 minutes blockage
InertialNavigation SystemBuilt-in
PowerAC220V, 50Hz
OperationalTemperature-40℃65℃
