Model No.: EC-130T

Production Capacity: 1 - 5 sets every four month...

Delivery Date: 12 - 14 weeks

Size: 13M

Band: Extended C Band

Feed Frequency Rx:: Rx: 3.4-4.2GHz

Means of Transport: Ocean,Land,Air

Packing: wooden package

Brand Name: Probecom

Antenna Type: Ring-focus

Polarization: Circular Polarization

Feed Frequency Tx:: Tx: 5.85-6.725GHz

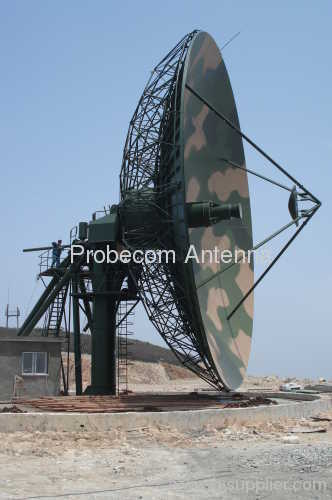

Probecom 13M extended C band antenna is designed for Arabsat 5C, providing Tx/Rx 4-port feed in circular polarization.

13 METER EARTH STATION ANTENNA

Probecom extended C band antenna is designed for Arabsat 5C,

1. General Description

Probecom Extended 13Meter ringfocus antenna providing Tx/Rx 4-port feed circular polarization for C-band

can deliver exceptionally high performance for transmit/receive applications.

Probecom Extended 13 M antenna RF specification adheres to ARABSAT.

ProbecomExtended 13M antenna reflector incorporates stretch-formed doubly contoured panels with

matched radials and hub for ease of field alignment. The standard designed azimuth over elevation pedestal provides a cost-effective solution for high stiffness and stability, full orbital arc coverage and fine drive performance, and ensures the pointing accuracy required for C-band operation.

2. Highlighted Features

*Meets Arabsat requirement

*High RF performance

*Galvanized Stainless steel hardware

*Different frequency ranges from many feed configurations

3. Options

Motorization Kits

Limit Switches

ODU Support Kits

Lightening Rod Kit

Grounding Kit Cable-Mounting Kit

Anti-icing and Deicing

4. Accessories

Factory Feed System Testing and Documentation

Ocean /Air Transport Packing

Foundation Kit

ElectricalSpecification
Type			EC-130T
OperatingFrequency, GHz			EC-Band
			Receive		Transmit
			3.4-4.2		5.85-6.725
Gain,Mid-band, dBi			52.1		56.37
Polarization			Circular
AxialRatio(4-Port Feed,circular)			1.06		1.06
VSWR			1.30		1.30
AntennaNoise Temperature 10°Elevation 30°Elevation 50°Elevation			42K 33K 30K
-3dB Beam Width, Mid-band			0.57°		0.38°
TypicalG/T(EL>10°)2-Port			33.1dB/K (30K LNA)
Tx.Power Capability, KW					3
FeedInterface			CPR-229F		WR137F
FeedInsertion Loss, dB			0.5		0.5
Isolation,Tx to Rx, dB			80
FirstSide lobe 90%Peaks under Following Envelop			≤-14 29-25logθ(1°≤θ20°)
MechanicalSpecification
AntennaDiameter				13.0m
AntennaType				RingFocus
SurfaceAccuracy(RMS)				≤0.5mm
AntennaPointing Range		Azimuth Elevation Polarization		±90° 5°~90°(Continuous) ±90°(Continuous)
DriveMode				Motorized
MotorDrive System	AzimuthTravel Rate ElevationTravel Rate			0.03°/S 0.03°/S
EnvironmentalSpecification
OperationalWind				79km/hgusting to 126km/h
SurvivalWind				200km/h
Temperature				-40°~+60°
RelativeHumidity				100%
SolarRadiation				1135Kcal/h/m²
Seismic(Survival)				Resistance to 8 degree of intensityearthquake
IceLoading				13mmOperational; 25mm Survival
