Model No.: PRBCK30T

Packing: wooden package

Brand Name: Probecom

Type: Ring focus

Polarization: Circular / Linear switchabl...

Means of Transport: Ocean,Land,Air,

Delivery Date: 2 - 4 weeks

Size: 3.0M

Frequency Band: C, Ku, Ka, X, S, L

Material: Aluminum

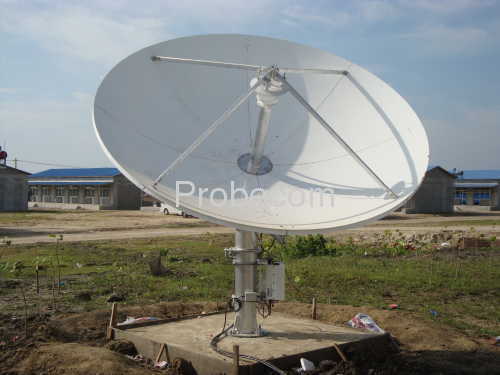

3.0m ring focus antenna can provide Tx/Rx 2-port feed in switchable linear & circular polarization for C-band, Ku band.

Probecom 3.0m ring focus antenna can provide Tx/Rx 2-port feed in switchable linear & circular polarization for C-band, 3.0m Ku band can only be for linear polarization.

Delivering exceptionally high performance for transmit/receive applications. RF specification can adhere to FCC Regulation25.209,IESS and ITU-RS.580-5,INMARSAT, ASIASAT,INTELSAT, APT and CHINASAT,etc.

3.0m ring focus antenna reflector incorporates stretch-formed doubly contoured panels with matched radials and hub for ease of field alignment. The standard designed azimuth over elevation pedestal provides a cost-effective solution for high stiffness and stability, full orbital arc coverage and fine drive performance, and ensures the pointing accuracy.

Highlighted Features

*Meets CCIR 580 and INTELSAT Requirements

*CP/LP switchable feed

*High RF performance

*Stainless hardware

*Different frequency ranges from many feed configurations

Options

*L,S,X bands and multi-bands

*800MHz bandwidth is available

*Feed blower or deicing with automatic controls

Antenna Accessory

Motorization Kits

Limit Switches

ODU Support Kits

Factory Feed System Testing and Documentation

Ocean /Air Transport Packing

Foundation Kit

Lightening Rod Kit

Grounding Kit Cable-Mounting Kit

Anti-icing and Deicing

ElectricalSpecification
Type			C30T			K30T
OperatingFrequency, GHz			C-Band			Ku-Band
			Receive		Transmit	Receive	Transmit
			3.625~4.2		5.85~6.425	10.95~12.75	13.75~14.5
Gain,Mid-band, dBi			40.12		43.70	49.42	50.73
Polarization			Linear/Circular			Linear
XPD(onAxis), dB			35		35	35	35
XPDacross 1dB Beam Width, dB			33		33	33	33
AxialRatio (Circular-Polarized)	2-Port Feed 4-Port Feed		1.30 1.06		1.09 1.06
VSWR			1.25		1.25	1.25	1.25
AntennaNoise Temperature 2-port feed 10°Elevation 30°Elevation 50°Elevation
			29K 22K 19K			48K 39K 35K
-3dB Beam Width, Mid-band			1.5°		1.1°	0.56°	0.48°
TypicalG/T(EL>10°)			20.4dB/K (30°LNA)			27dB/K (70° LNA)
Tx.Power Capability, KW					5		2
FeedInterface			CPR—229F		CPR—137F	WR-75	WR-75
FeedInsertion Loss, dB			0.2		0.2	0.25	0.2
Isolation,Tx to Rx, dB			85			85
FirstSide lobe 90%Peaks under Following Envelop			-14 29-25logθ(1°≤θ20°)			-14 29-25logθ(1°≤θ20°)
MechanicalSpecification
AntennaDiameter				3m
AntennaType				RingFocus
SurfaceAccuracy(RMS)				≤0.35mm
AntennaPointing Range		Azimuth Elevation Polarization		0°~360°(Continuous) 0°~90°(Continuous) ±90°(Continuous)
DriveMode				Manualor Motorized
EnvironmentalSpecification
OperationalWind				72km/hgusting to 97km/h
SurvivalWind				216km/h
Temperature				-40°~+60°
RelativeHumidity				100%
SolarRadiation				1135Kcal/h/m²
Seismic(Survival)				0.3g(H),0.15g(V)
IceLoading				13mmOperational; 25mm Survival
